water mist pump HPCW series

What Is A Water Mist Pump AWS-HYDRO Refered to?

AWS-HYDRO water mist pump is a positive displacement pump axial piston type. Positive displacement axial piston pumps are used to give a smooth flow at the operating pressure.

The positive displacement design means that output flow is proportional to the rotational speed of the pump. Therefore our larger pumps are speed controlled by an inverter so that the throughput can be set to match your application. It means that you can save both power and water.

Housed in stainless steel cases, and composed of stainless steel and PEEK in the internal structure, the pumps are designed to be easy to install and maintain, whilst being rugged for the most demanding of applications.

Applications For Water Mist Pumps | High Pressure Fog Pumps

Fogging pumps produce ultra-small droplets, approximately 1–10 microns

What is a humidifer?

A commercial or industrial humidification system is equipment that controls humidity levels in industrial environments, in order to create optimal conditions for health, manufacturing, plant growth, and more.


Some environments require high humidity levels, from greenhouses to animal enclosures in zoos, and foggers are a great solution. Proper pump selection is the most important consideration in humidification systems. Regardless of the industry or application requiring humidity control, an industrial-grade high-performance high-pressure pump is essential.



With a water-lubricated high-pressure pump, the water is pumped through a stainless steel hydraulic pump at a pressure of 70 bar~100 bar to the humidification units where it is finally atomized with the high-performance nozzles.

Pipe with Nozzles and Fog

With a water-lubricated high-pressure pump, the water is pumped through a stainless steel hydraulic pump at a pressure of 70 bar~100 bar to the humidification units where it is finally atomized with the high-performance nozzles.



Controlling humidity is very important to a variety of industrial and manufacturing applications, including the following:

Microchip and computer
Textiles and Paper
Lumber Conditioning
Commercial and Industrial Paint Booths
Hatcheries
Warehousing and cold storage
Wine and liquor
Woodworking
Greenhouse
high pressure water mist pump units

Misting pumps produce slightly larger droplet sizes, approximately 10–100 microns.

What is water mist?

Water mist is a highly efficient fire suppression system that uses specially designed nozzles to create a fine mist. water mist systems deliver fire suppression by removing both heat and oxygen from a fire by jetting pressurized water through specially designed nozzles. The nozzles atomize the water into micron-sized droplets, which rapidly expand into steam when they come into contact with fire, depriving the fire of oxygen.
At the high pressure water mist system as the extinguishing factor, water (changed into water mist) is used. The pump is a 9-piston, stainless steel maintenance-free. The system performance is enhanced using these oil-free, water-lubricated pumps. The 9-piston pumps deliver a smooth water output with reduced pulsation, which plays a major role in creating an effective water mist spray pattern. As the pumps are water lubricated, there is a reduced potential for cross-contamination of water and lubricating oil. All the pumps are maintenance-free and are manufactured from 304 Stainless Steel.

Features And Benefits

• Oil-free, with water as the only cooling and lubricant, eliminating potential cross-contamination between lubricating oil and water.

• Ultra-clean technology with no lubricating oil and no cross-contamination

• Compact structure, easy to assemble, disassemble and maintain

• Excellent corrosion resistance

• Multi-piston design for minimal pulsation

• Widely used in ultrapure water treatment fields

• Longer service life brings ultra-low cost of use

• Excellent Stability

Water Mist Pump?

Water Mist Pump Data Sheet

For "W" Series Industrial High Pressure Pumps; Motor-driven Pump; Stainless Steel Pressure Pump

Model 2 3.2 4 6.3 8 10 11.5 12.5
geometric displacement (cc/rev) 2 3.2 4 6.3 8 10 11.5 12.5
Minimum output pressure（barg） 30 30 30 30 30 30 30 30
Maximum output pressure（barg） 140 140 140 140 160 160 160 160
Continuous inlet pressure（barg） 0-4 0-4 0-4 0-4 0.1-5 0.1-5 0.1-5 0.1-5
Minimum speed (rpm) 700 700 700 700 700 700 700 700
Maximum speed (rpm) 1800 1800 1800 1800 3000 3000 3000 3000
700 rpm Flow at maximum working pressure (L/min) 0.3 1.3 1.9 3.7 5 6.3 7.2 7.9
1000 rpm Flow at maximum working pressure (L/min) 1 2.3 3.2 5.6 7.2 9.1 10.4 11.4
1500 rpm Flow at maximum working pressure (L/min) 2 3.9 5.2 8.7 11 13.8 15.8 17.3
2000 rpm Flow at maximum working pressure (L/min) - - - - 14.8 18.6 21.4 23.3
3000 rpm Flow at maximum working pressure (L/min) - - - - 22.8 28.5 32.8 35.6
1500 rpm Power consumption at maximum operating pressure (KW) 0.9 1.4 1.7 2.6 3.4 4.2 4.9 5.3
Fluid temperature (℃) 2-50 2-50 2-50 2-50 2-50 2-50 2-50 2-50
Ambient temperature (℃) 0-50 0-50 0-50 0-50 0-50 0-50 0-50 0-50
Noise (dB) 76 76 76 76 76 76 76 76
Weight (kg) 4.5 4.5 4.5 4.5 8.6 8.6 8.6 8.6
Integrated Rinsing Valve NO NO NO NO NO NO NO NO
Model 20 25 32 40
geometric displacement (cc/rev) 20 25 32 40
Minimum output pressure（barg） 30 30 30 30
Maximum output pressure（barg） 160 160 160 160
Continuous inlet pressure（barg）700-1800RPM 0-5 0-5 0-5 0-5
Continuous inlet pressure（barg）1800-3600RPM 1-5 1-5 1-5 1-5
Minimum speed (rpm) 700 700 700 700
Maximum speed (rpm) 3600 3600 3600 3000
1000 rpm Flow at maximum working pressure (L/min) 18.0 22.5 28.8 36.0
1500 rpm Flow at maximum working pressure (L/min) 27.0 33.7 43.1 54.0
1800 rpm Flow at maximum working pressure (L/min) 32.4 40.6 51.9 64.9
3000 rpm Flow at maximum working pressure (L/min) 54.5 68.0 87.0 110.0
3600 rpm Flow at maximum working pressure (L/min) 65.1 82.0 104.1 /
1500 rpm Power consumption at maximum operating pressure (KW) 7.2 9.0 11.5 14.5
1800 rpm Power consumption at maximum operating pressure (KW) 8.7 10.8 13.9 17.5
Fluid temperature (℃) 2-50 2-50 2-50 2-50
Ambient temperature (℃) 0-50 0-50 0-50 0-50
Mechanical Efficiency at max. pressure 0.9 0.9 0.9 0.9
Noise (dB) 1500/3000RPM 78 / 85 78 / 85 78 / 85 78 / 85
Weight (kg) 14.7 14.7 14.7 14.7
Integrated Rinsing Valve NO NO NO NO
Model 50 65 71 81 100
geometric displacement (cc/rev) 50 65 71 81 100
Minimum output pressure（barg） 30 30 30 30 30
Maximum output pressure（barg） 160 160 160 160 130
Continuous inlet pressure（barg） 0-5 0-5 0-5 0-5 0-5
Minimum speed (rpm) 700 700 700 700 700
Maximum speed (rpm) 1800 1800 1800 1800 1500
1000 rpm Flow at maximum working pressure (L/min) 46.5 60.5 66.0 75.3 93.0
1200 rpm Flow at maximum working pressure (L/min) 55.8 72.6 79.2 90.35 111.6
1500 rpm Flow at maximum working pressure (L/min) 71.3 92.6 101.2 115.4 142.5
1800 rpm Flow at maximum working pressure (L/min) 85.9 106.5 118.0 136.0 /
1500 rpm Power consumption at maximum operating pressure (KW) 19.0 24.7 27.0 30.8 30.9
1800 rpm Power consumption at maximum operating pressure (KW) 22.8 29.7 32.4 37.0 /
Fluid temperature (℃) 2-50 2-50 2-50 2-50 2-50
Ambient temperature (℃) 0-50 0-50 0-50 0-50 0-50
Mechanical Efficiency at max. pressure 0.95 0.95 0.95 0.95 0.95
Noise (dB) 80 80 80 80 80
Weight (kg) 24.8 24.8 24.8 24.8 25
Integrated Rinsing Valve NO NO NO NO NO

For "T" Series Industrial High Pressure Pumps; Motor-driven Pump; Stainless Steel Pressure Pump

Model 2 3.2 4 6.3 10 12.5 20 25 32 50 70 80 90
geometric displacement (cc/rev) 2 3.2 4 6.3 10 12.5 20 25 32 50 70 80 90
Shell Housing Material (SS) 304 304 304 304 304 304 316 316 316 316 316 316 316
Minimum output pressure（barg） 10 10 10 10 10 10 30 30 30 30 30 30 30
Maximum output pressure（barg） 100 100 100 100 100 100 100 100 100 80 100 100 100
Continuous inlet pressure（barg） 0-4 0-4 0-4 0-4 0-4 0-4 0-4 0-4 0-4 0-5 0-5 0-5 0-5
Minimum speed (rpm) 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
Maximum speed (rpm) 3000 3000 3000 3000 2400 2400 2400 2400 2400 1800 1800 1800 1800
1000 rpm Flow at maximum working pressure (L/min) 0.7 2 3 5.5 7.6 10.2 16.9 20.6 28 43.6 57.6 68.2 77.5
1500 rpm Flow at maximum working pressure (L/min) 1.7 3.6 5 8.6 12.6 16.5 27 33.2 44.2 68.6 92.8 108.5 122.5
1800 rpm Flow at maximum working pressure (L/min) 2.25 4.54 6.05 10.2 18.15 24 32.5 40 52.9 82 112 130.5 147
Flow @Max.rpm, 100bar pressure (L/min) 3.45 7.56 10.15 18.06 20.15 26.4 44.2 55.8 72.6 - - - -
1500 rpm Power consumption at maximum operating pressure (KW) 0.75 1.1 1.5 2.2 4 5.5 5.5 11 15 11 30 37 45
Fluid temperature (℃) 2-50 2-50 2-50 2-50 2-50 2-50 2-50 2-50 2-50 2-50 2-50 2-50 2-50
Ambient temperature (℃) 0-50 0-50 0-50 0-50 0-50 0-50 0-50 0-50 0-50 0-50 0-50 0-50 0-50
Mechanical Efficiency 0.8 0.8 0.8 0.8 0.9 0.9 0.95 0.95 0.95 0.95 0.95 0.95 0.95
Noise (dB) 76 76 76 76 76 76 79 79 79 80 80 80 80
Weight (kg) 4.5 4.5 4.5 4.5 7.6 7.6 14.8 14.8 14.8 24.8 24.8 24.8 24.8
Integrated Rinsing Valve NO NO NO NO NO NO NO NO NO NO NO NO NO

Water Mist Pump Installation Size Parameters

Water High Pressure Pump HPC2-6.3
Models cover: HPC140 - 2W, HPC140 - 3.2W, HPC140 - 4W, HPC140 - 6.3W
"W" stands for Tap Water;
Working Pressure range: 30 bar to 140 bar
"HPA" stands for High-pressure Pump Anti-Clockwise;
"HPC" stands for High-pressure Pump Clockwise
water high pressure pump HPC8-12.5
Models cover: HPC160 - 8W, HPC160 - 10W, HPC160 - 11.5W, HPC160 - 12.5W
"W" stands for Tap Water;
Working Pressure range: 30 bar to 160 bar
"HPA" stands for High-pressure Pump Anti-Clockwise;
"HPC" stands for High-pressure Pump Clockwise
Stainless Steel Piston Pump HPC20-40
Models cover: HPC160 - 20W, HPC160 - 25W, HPC160 - 32W, HPC160 - 40W
"W" stands for Tap Water;
Working Pressure range: 30 bar to 160 bar
"HPA" stands for High-pressure Pump Anti-Clockwise;
"HPC" stands for High-pressure Pump Clockwise
High Pressure Piston Water Pump HPC50-100
Models cover: HPC160 - 50W, HPC160 - 65W, HPC160 - 71W, HPC160 - 81W, HPC130-100W
"W" stands for Tap Water;
Working Pressure range: 30 bar to 160 bar and 30 bar to 130 bar.
"HPA" stands for High-pressure Pump Anti-Clockwise;
"HPC" stands for High-pressure Pump Clockwise
High pressure misting pump HPC2-6.3T for adiabatic cooling
Models cover: HPC100 - 2T, HPC100 - 3.2T, HPC100 - 4T, HPC100 - 6.3T
"T" stands for Technical Water
including pure water, ultra-pure water, DI water, Deionized water;
Working Pressure range: 10 bar to 100 bar
"HPC" stands for High-pressure Pump Clockwise
High pressure fogging pump HPC10-12.5T for humidification systems
Models cover: HPC100 - 10T, HPC100 - 12.5T
"T" stands for Technical Water
including pure water, ultra-pure water, DI water, Deionized water;
Working Pressure range: 10 bar to 100 bar
"HPC" stands for High-pressure Pump Clockwise
Pressure pump for cleaning HPC20-32T for electronic parts
Models cover: HPC100 - 20T, HPC100 - 25T, HPC100 - 32T
"T" stands for Technical Water
including pure water, ultra-pure water, DI water, Deionized water;
Working Pressure range: 30 bar to 100 bar
"HPC" stands for High-pressure Pump Clockwise
High pressure cleaning pump HPC50-90T for electronic parts
Models cover: HPC80 - 50T, HPC100 - 70T, HPC100 - 80T, HPC100 - 90T
"T" stands for Technical Water
including pure water, ultra-pure water, DI water, Deionized water;
Working Pressure range: 30 bar to 100 bar
"HPC" stands for High-pressure Pump Clockwise

Water Mist Pump In Possible Applications

Welcome To Send Inquiry to Us and Let's Make a Win-Win Business Together!

Principle Of High-pressure Humidification System


Pump makes pressure from inlet 3bar to outlet pressure 70bar. The flow of pump from 1l/h to 8000l/h depend on different models of water mist pumps. In the pipe water flow to nozzles with pressure 70bar. In the pipe pressure of water 70bar go out through small hole in the nozzle 0.1mm to atmosphere where the pressure 1bar . The pressure difference is too big from 70bar to 1bar then water turning to fog. The quantity of nozzles could be from 1 to 1000 nozzles.

Process of humidification

Documents for China Water Mist Pump HPCW/HPCT series

  • Model HPC2-90T high pressure pump data sheet -latest

  • Model HPC2-12.5W High Pressure Pump Data Sheet -Latest.pdf

  • Model HPC20-100W High Pressure Pump Data Sheet -Latest.pdf

  • Model HPC140-169W High Pressure Pump Data Sheet -Latest.pdf

FAQs

Specifications Guide

"W" Series: Water Mist Pump | High Pressure Fog Pump | Stainless Steel Piston Pump

Product Model High Pressure pump HPA/C Model High Pressure pump Weight [kg] High Pressure pump Typical Flow [L/Min] High Pressure pump Typical Speed [rpm] High Pressure pump Speed Range [rpm]  High Pressure pump Power Requirement @Max.Pres., 1500RPM Types of pumps High Pressure pump Details
2 AWS180B0024L 4.5 2 1500 700-1800 - Axial Piston Pump View Details <<
4 AWS180B0022L 4.5 5.2 1500 700-1800 - Axial Piston Pump View Details <<
6.3 AWS180B0023L 4.5 8.7 1500 700-1800 - Axial Piston Pump View Details <<
10 AWS180B0008L 8.6 13.8 1500 700~3000 4.2KW Axial Piston Pump View Details <<
12.5 AWS180B0007L 8.6 17.3 1500 700~3000 5.3KW Axial Piston Pump View Details <<
20 AWS180B0079L 14.7 27.0 1500 700~3600 7.2KW Axial Piston Pump View Details <<
25 AWS180B0036L 14.7 33.7 1500 700~3600 9.0KW Axial Piston Pump View Details <<
32 AWS180B0037L 14.7 43.1 1500 700~3600 11.5KW Axial Piston Pump View Details <<
50 AWS180B0047L 24.8 71.3 1500 700~1800 19.0KW Axial Piston Pump View Details <<
65 AWS180B0040L 24.8 92.6 1500 700~1800 24.7KW Axial Piston Pump View Details <<
71 AWS180B0042L 24.8 101.2 1500 700~1800 27.0KW Axial Piston Pump View Details <<
81 AWS180B0041L 24.8 115.4 1500 700~1800 30.8KW Axial Piston Pump View Details <<
100 AWS180B0076L 24.8 142.5 1500 700~1500 30.9KW Axial Piston Pump View Details <<

"T" Series: Technical Water Pump | High Pressure Misting Pump | Stainless Steel Piston Pump

Product Model High Pressure pump HPA/C Model High Pressure pump Weight [kg] High Pressure pump Typical Flow [L/Min] High Pressure pump Typical Speed [rpm] High Pressure pump Speed Range [rpm]  High Pressure pump Power Requirement @100 bar, 1500RPM Types of pumps High Pressure pump Details
2 AWS180B0031L 4.5 1.7 1500 1000-3000 0.75KW Axial Piston Pump View Details <<
3.2 AWS180B0077L 4.5 3.6 1500 1000-3000 1.1KW Axial Piston Pump View Details <<
4 AWS180B0030L 4.5 5 1500 1000-3000 1.5KW Axial Piston Pump View Details <<
6.3 AWS180B0029L 4.5 8.6 1500 1000-3000 2.2KW Axial Piston Pump View Details <<
10 AWS180B0032L 7.6 12.6 1500 1000~2400 4KW Axial Piston Pump View Details <<
12.5 AWS180B0033L 7.6 16.5 1500 1000~2400 5.5KW Axial Piston Pump View Details <<
20 AWS180B0019L 14.8 27 1500 1000~2400 5.5KW Axial Piston Pump View Details <<
25 AWS180B0020L 14.8 33.2 1500 1000~2400 11KW Axial Piston Pump View Details <<
32 AWS180B0021L 14.8 44.2 1500 1000~2400 15KW Axial Piston Pump View Details <<
50 AWS180B0085L 33 68.6 1500 1000~1800 11KW Axial Piston Pump View Details <<
70 AWS180B0087L 33 92.8 1500 1000~1800 30KW Axial Piston Pump View Details <<
80 AWS180B0088L 33 108.5 1500 1000~1800 37KW Axial Piston Pump View Details <<
90 AWS180B0089L 33 122.5 1500 1000~1800 45KW Axial Piston Pump View Details <<

Accessories You May Need

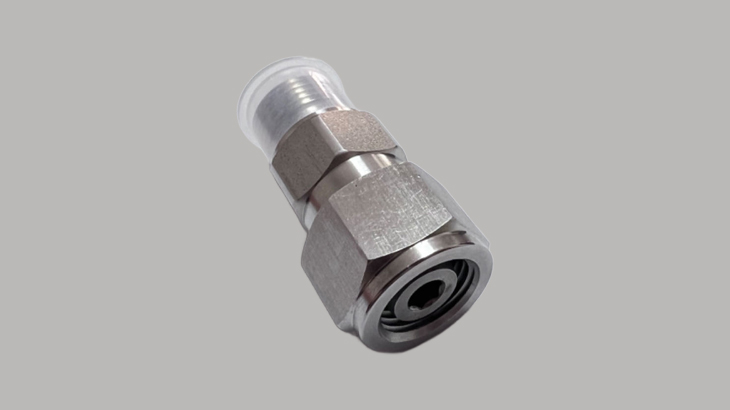

CHECK VALVE

One-way Valve

CHECK VALVE

Non-return Valve M16

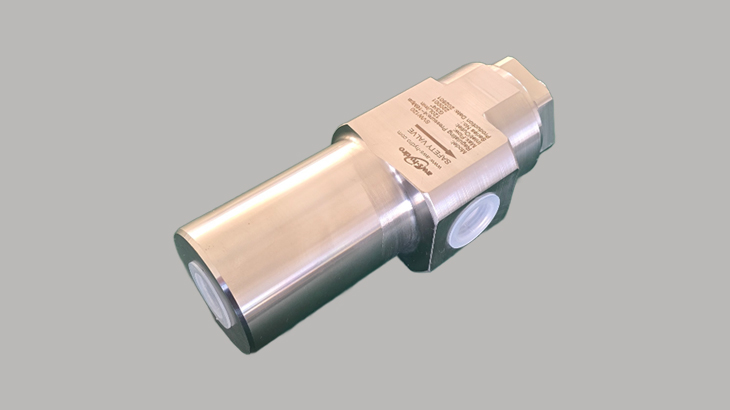

PRESSURE RELIEF VALVE

Pressure Relief Valve SVW

SAFETY VALVE

Safety Relief Valve

Blog For High-Pressure Pumps | Water mist pump | High pressure fog pump


  • 编组 125备份_534_400.png
    2022
    03-12
    Nine Piston High Pressure Pump VS Three Piston High Pressure Pump
    ① From a clean and environmentally friendly perspective:All friction pairs of the Nine Piston Pump are lubricated by water and do not contain a drop of lubricating oil, which is clean and environmentally friendly, while the traditional three-piston pump is a main shaft drive mechanism, which uses oi
  • 编组 56.png
    2022
    03-12
    Which pumps are used for high pressure?
    In the world of high-pressure pumps, there are more varieties of high-pressure pumps available. High pressure pumps are used on a daily basis in all kinds of different industries. E.g., high pressure pumps (HPPs) are the major energy consumers in RO plants, and at most times, selection amongst the

Related Products

We Are Here To Help

Have questions or just want some information?
Make an enquiry now and one of our team members will be in touch with you as soon as possible.
logo--

Be the first to know about our lastest products.

COPYRIGHT © 2024 AWS-HYDRO ALL RIGHTS RESERVED.
SITEMAP | PRIVACY POLICY

Products

Quick Links

Contact Us
   info@aws-hydro.com
   +86-15861879938
  Tongjiang Road,  Xinbei District,  Changzhou, Jiangsu, China.
