HPC2-6.3
1.7 LPM ~ 8.6 LPM
1000 rpm
3000 rpm
100 Bar
Pure water, ultra-pure water, DI water, Deionized water, Technical water
As your requirements
304 Stainless Steel
| Series: | |
|---|---|
| Quantity: | |
HPC2-6.3 high pressure misting pumps are designed for two ports and are mainly used in ultra-pure water. The pump is not designed to suck water, and the inlet pressure must always be positive. If this cannot be guaranteed, it will cause permanent failure of the pump.
The simplest method is to remove the inlet pipe of the pump and measure the flow. When the liquid level of the water tank is at the lowest value, the water supply flow must be 20% larger than the delivery flow of the pump to ensure that the inlet always maintains positive pressure when the pump is running.
Do not install a filter between the pump and the water tank with direct water supply, unless a pressure switch is installed on the inlet pipe to ensure that the inlet of the pump is not affected by negative pressure;
m
Use a standard bell housing and coupling for connecting the pump to the B5 motor flange. The pump must not be operated with axial or radial loads on the output shaft; gear couplings are used whenever possible.
HPC2-6.3 high pressure misting pumps are used between 2℃ and 50℃ to achieve full performance. For temperatures below freezing, environmentally friendly antifreeze is required; those above 50℃ are also possible, but the volumetric efficiency of the pump will be affected and the maximum operating temperature must be specified before ordering.
All water entering the pump must be pre-filtered to a nominal rating of 10um (absolute value of 25um).
For closed loop systems, backflow filtration is possible. High-pressure filtration can also be used, but we think this is a more expensive option.
The standard product works well on pure water and industrial water (I. e. distilled water, reverse osmosis cleaned water, or demineralized water). Depending on the operating environment, changes to the sealing material or structure may be required.
Standard construction can be used on pure water, however, due to the increased corrosion potential of the liquid, the longer-term operation may require higher-quality material construction.
| Name | High Pressure Misting Pump HPC2-6.3 |
| Stock Status | Inventory, and Usually Ships in 4 Weeks |
| Weight | 4.5KG |
| Country of Origin | China |
| Email For Price | YES |
| Series | T |
| Related Products | Please go to HPC DATA SHEET |
HPC100 - 2T
HPC100 - 3.2T
HPC100 - 4T
HPC100 - 6.3T

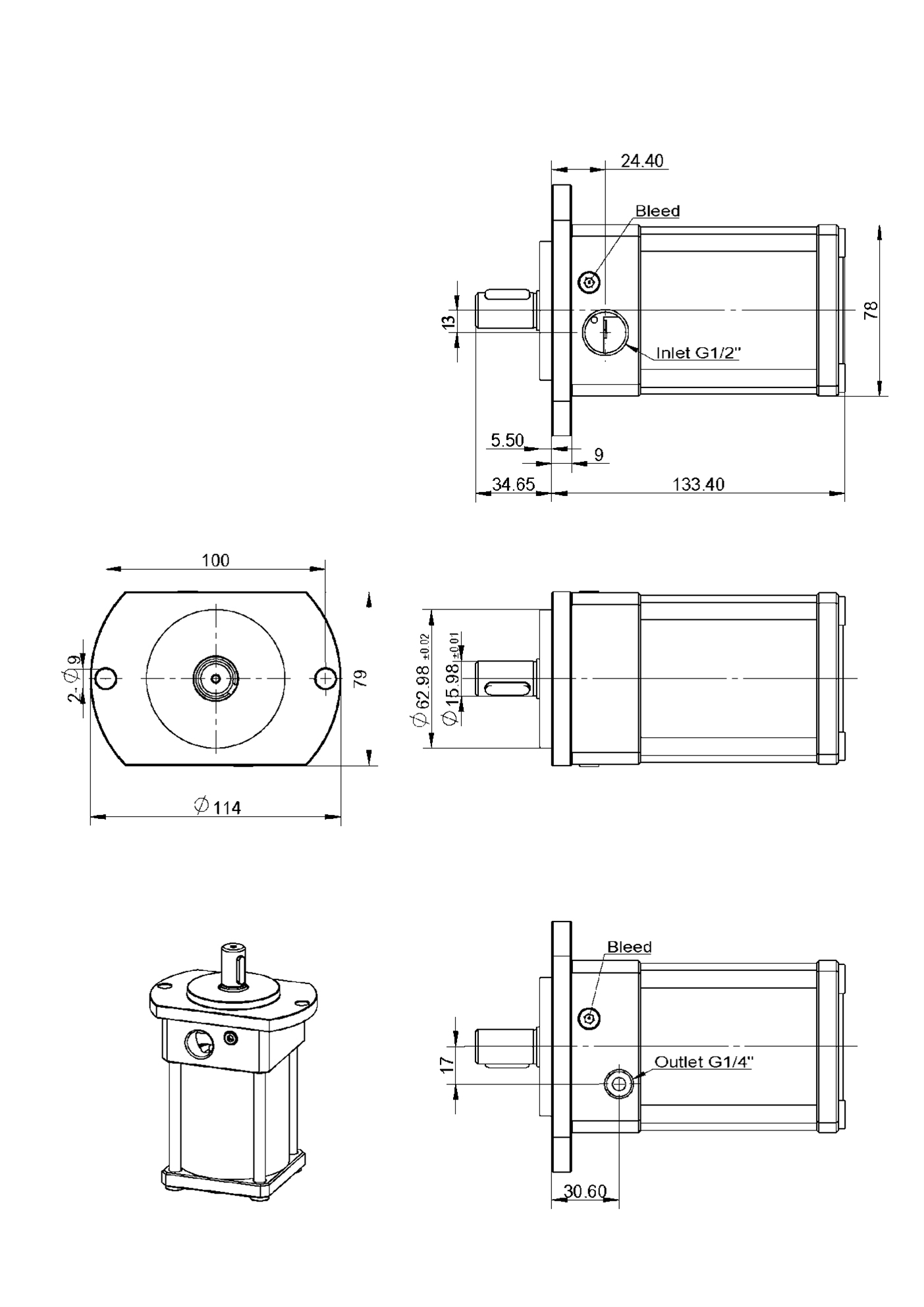

| Flat key size | 5*5*20 (DIN6885) |
| Vent Port Bolt (Bleed) | M5*8 |
| T Port (Inlet Port) | G 1/2" |
| Pressure Port (Outlet Port) | G 1/4" |

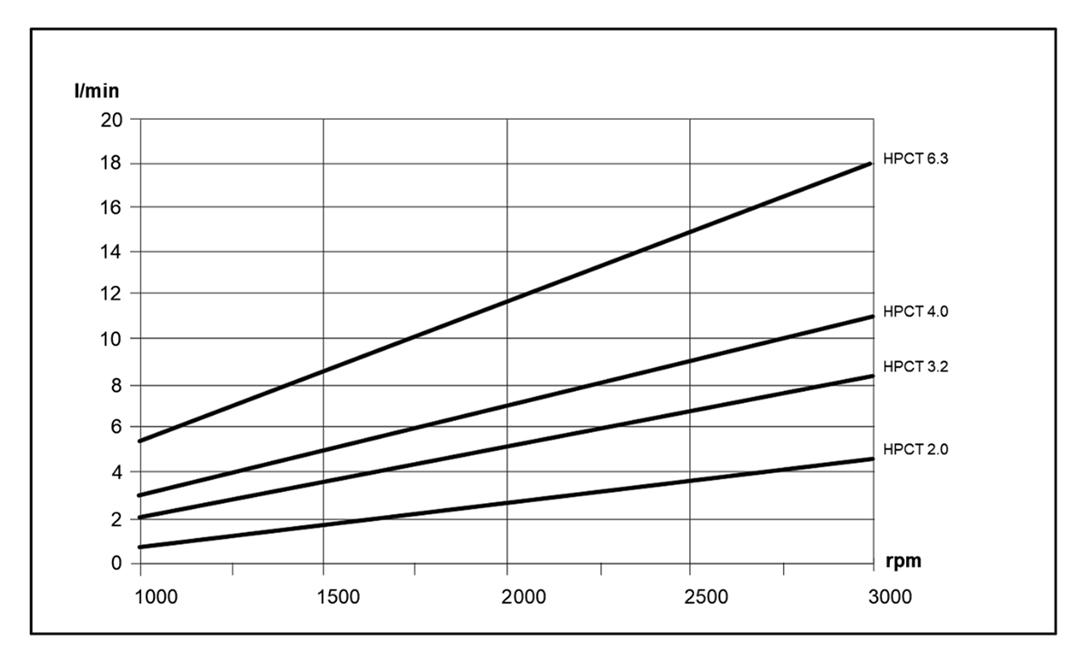

Maximum Pressure Typical Flow Curve

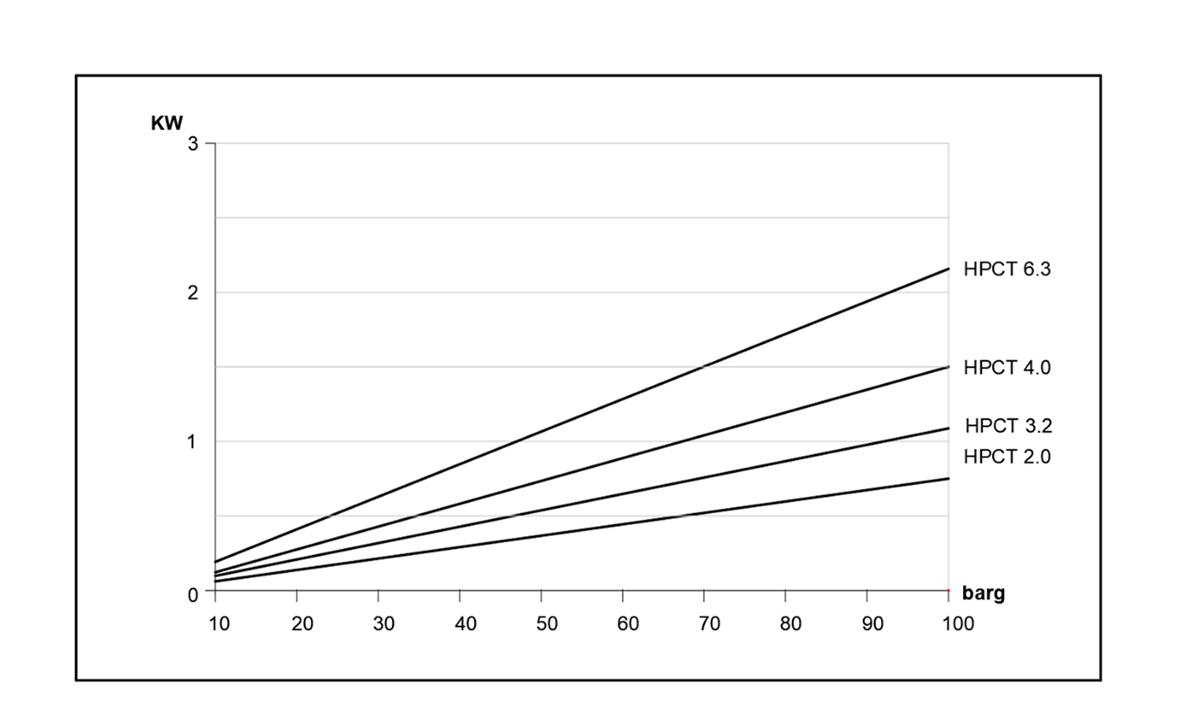

Different Pressure Motor Power Curve (1500rpm)
