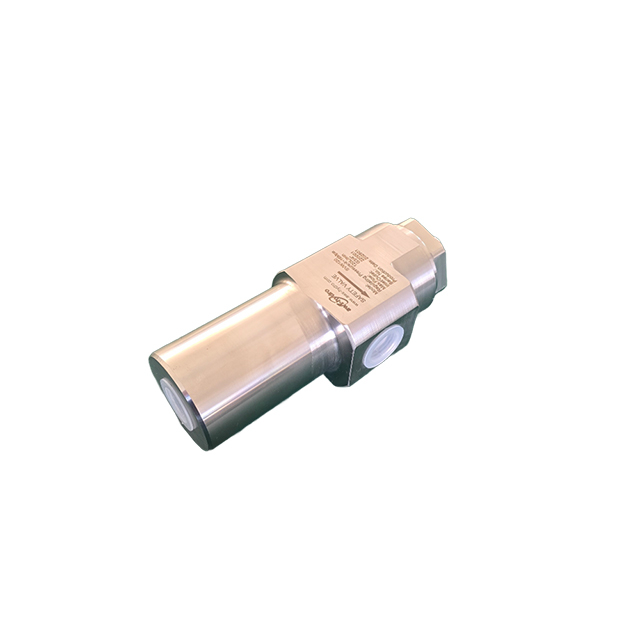

Pressure Relief Valve

Pressure relief valves (PRVs) are a pivotal part of pump systems and protect the equipment from the buildup of excessive pressure during operation. The SVW series pressure relief valve is designed for tap water, and for controlling the system pressure by draining off the surplus water from the pressure side.

  • SVW

  • 120 l/min

  • SVW30, SVW60, SVW120

  • 304 SS

  • Tap Water, RO Cleaned Water

  • G3/8", G1/2", G3/4"

Availability:
Quantity:

Introduction


The pressure relief valve is used for protecting the components of a system against overload as a result of a pressure peak. It is made of corrosion-proof parts 304 stainless steel, and available with different pressure ranges.


The pressure relief valves are available in three sizes:

• 30 l/min.

• 60 l/min.

• 120 l/min.



Filtration & Corrosion:


It is strongly recommend to always use precision depth filter cartridges in the system, rated 10 μm abs. β10 ≥ 5,000. or better. If the

 pressure relief valve is exposed to a temperature below freezing, it must be protected against freezing.


Technical Specifications:


Text
Unit SVW 30
SVW 60 SVW 120
Pressure Regulation Range Bar 25-140
40-140
40-160
Flow (max.) l/min 30
60 120
Temperature Fluid (max. °C) °C 50 50 50
Temperature Ambient (max. °C) °C 50 50 50
Inlet/Outlet Port Size Inch G3/8"
G1/2"
G3/4"


Dimensions:

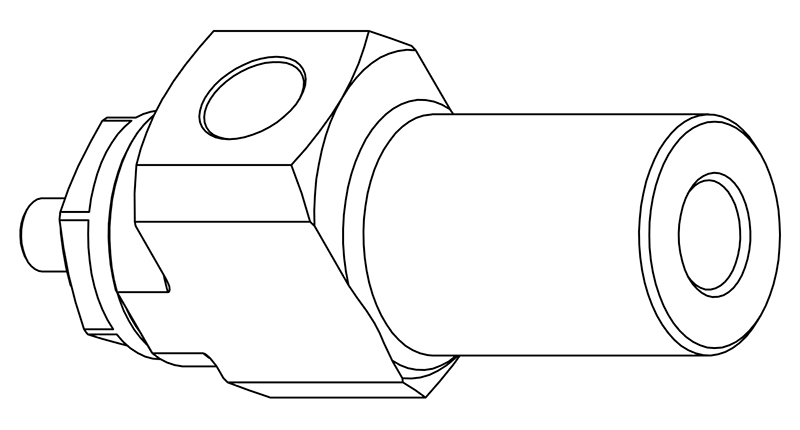

high pressure relief valve SVW 30

SVW 30

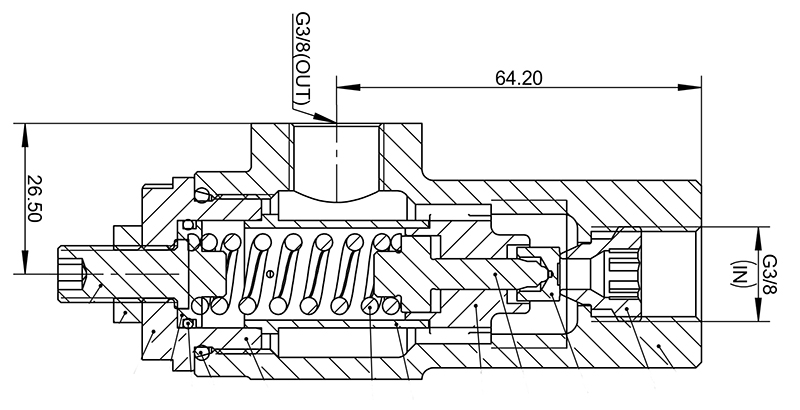

pressure relief valve for water pump SVW 30

SVW 30

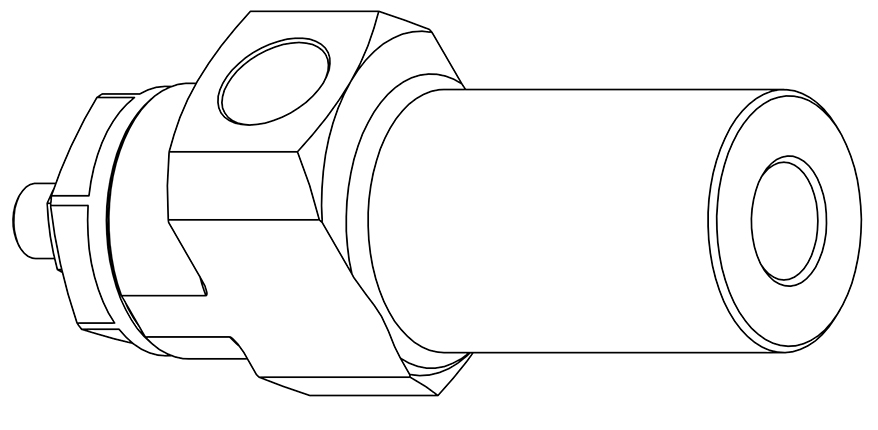

water safety valve SVW 60

SVW 60

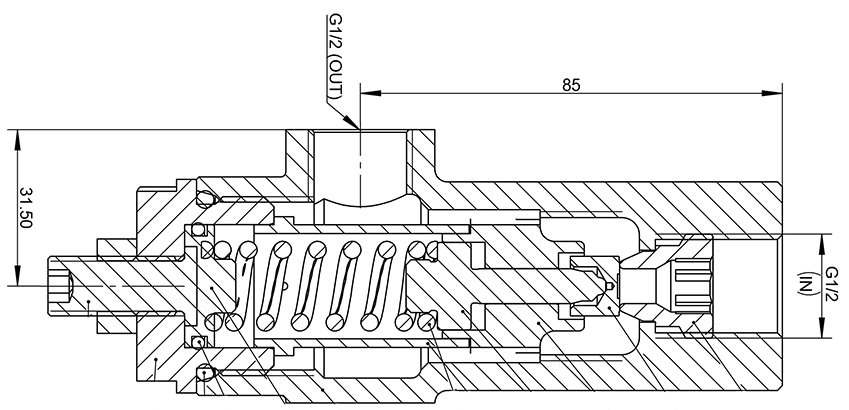

high pressure safety valve SVW 60

SVW60

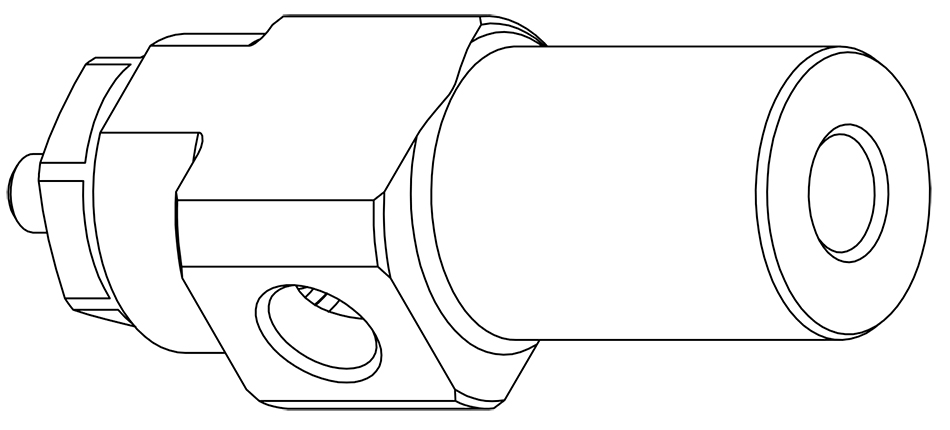

discharge relief valve SVW 120

SVW 120

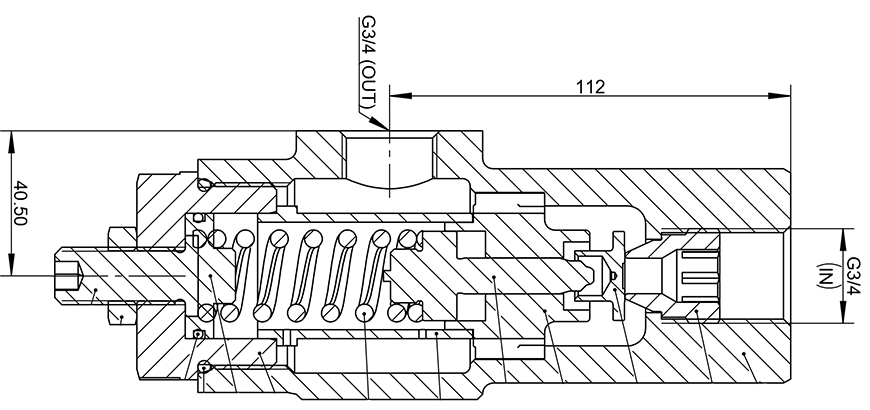

pressure relief valve on pump discharge SVW 120

SVW 120
