Check Valve

Availability:
Quantity:

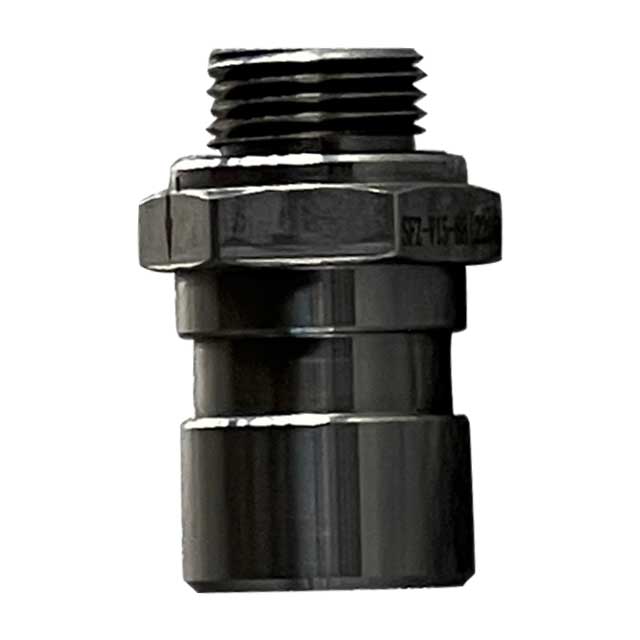

What is a high-pressure piston pump check valve?


One-way valve means that fluid can only flow along the water inlet of the valve, but the medium at the water outlet cannot flow back. It is commonly known as a one-way valve., which is also called check valve. It is used in hydraulic systems to prevent reverse flow of oil flow, or used in pneumatic systems to prevent reverse flow of compressed air.


Benefits:


1. Beautiful appearance, small size

2. Easy to install and disassemble

3. Integrated installation with high pressure piston pump.


Technical Parameter:


Water Inlet (Thread) G1/2”、G3/4”、M42、M52, etc.
Outlet (Coupling Interface) DN20、DN25、DN40,   etc.
Body Material 2205 Duplex stainless steel
Applicable Medium High-salt wastewater, sea water, brackish water, etc.
Proper Temperature 2℃~80℃
Pressure 10MPa


Dimensions:



check valve dimension draw


Model A B C D E
SFZ-V15-8H 50 30 27 10 G1/2”
SFZ-V20-8H 57 35 34 12 G3/4”
SFZ-V25-8H 100 52 48 13 M42*1.5


OEM or Sourcing Accessories:


1. From Standard Stock

Choose from our stock is the quickest and most cost-effective route on the market. Many customers find a good match from our accessories page. If you don’t find what you are looking for, please contact AWS HYDRO


2. Creating Your Own

If standard parts cannot meet the specific needs of customers, we can help sourcing; or, if the unique is a must for a special application, it may be worth investing in a unique design of your own, we would help OEM non-standard parts if possible.
